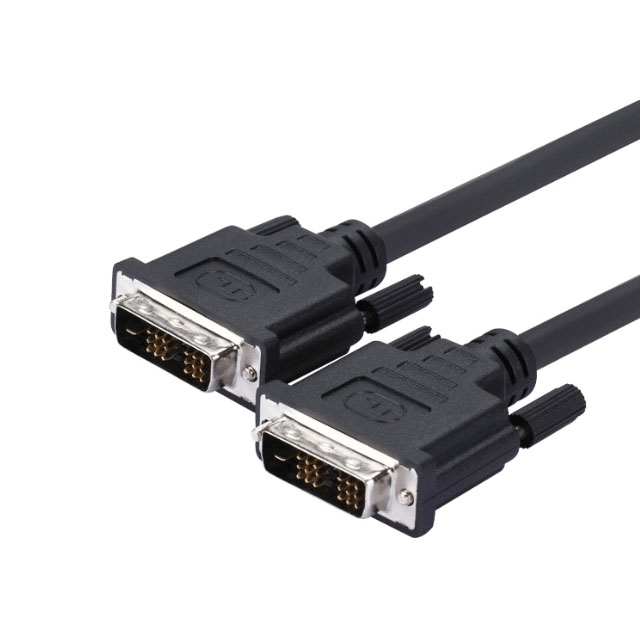

DVI 18+1 Male To Male Single-link Cable

1.This precision-engineered cable is fully compliant with the DVI standard defined by DDWG (Digital

   Display Working Group).

2.The DVI-I single link configuration provides enough bandwidth for resolutions up to 1600 x 1200

   pixels and allows high speed transmission up to 4.95 Gbps.

3.Three analog 30 AWG coaxial lines enable high speed analog transmission.
4.Tri-shielded undermold with dual Mylar foil and braid shield protects against unwanted EMI/RFI

   interference.

5.Each coax line is individually wrapped in foam-polyolefin insulation and overwrapped with a

   braided tinned copper shield.

6.28 AWG copper conductors are individually insulated in hard-density polypropylene to minimize

  crosstalk, and ensure high-speed, error-free transmission.

7.Gold-plated contacts provide full conductivity with no data loss.

8.PC and Mac compatible cable supports hot-plugging of DVI display devices.
