HL-HDMI-601
HDMI 2.0V up to 40M
DC 5V
60HZ
ROHS CE FCC
3 years
Availability: | |
---|---|
Quantity: | |
Bandwidth up to 18Gbps, resolution up to 4Kx2K@60Hz, YUV 4:4:4
Transmit up to 25m under 4Kx2K@60Hz, YUV 4:4:4, 50m under 1080P@60Hz
1xHDMI in, 1xHDMI out, 1xDC receptacle
Connect the included DC to USB AM cable when the power is insufficient
HDCP2.2 compliant
CEC Pass through
Support 3D
No need power supply
Bandwidth up to 18Gbps, resolution up to 4Kx2K@60Hz, YUV 4:4:4
Transmit up to 25m under 4Kx2K@60Hz, YUV 4:4:4, 50m under 1080P@60Hz
1xHDMI in, 1xHDMI out, 1xDC receptacle
Connect the included DC to USB AM cable when the power is insufficient
HDCP2.2 compliant
CEC Pass through
Support 3D
No need power supply
Specifications
Input | 1x HDMI |
Output | 1x HDMI |
4K@60Hz, YUV 4:4:4, 25m (15m to source + 10m to display) | |
Maximum Range | 4K@30Hz, 40m (25m to source + 15m to display) |
1080P@60Hz, 50m (30m to source + 20m to display) | |
Maximum Resolution | 4K@60Hz, 4:4:4 |
Data transfer speed rate | 18Gbps(Maximum) |
HDMI Compliance | Up to HDMI2.0 |
HDCP Compliance | Up to HDCP2.2 |
Operating Temperature Range | -5 to +55℃ |
Operating Humidity Range | 5 to 90%RH (No Condensation) |
Support Video Color Format | Deep color 36bit |
Support Audio Format | DTS-HD/true-HD/LPCM7.1/AC3/DTS/DSD |
Power consumption | 1Watts(Maximum) |
External Power Source (optional) | 5V 150mA on DC receptacle |
Dimension (L×W×H) | 52x48x20mm |
Net Weight | 70g |

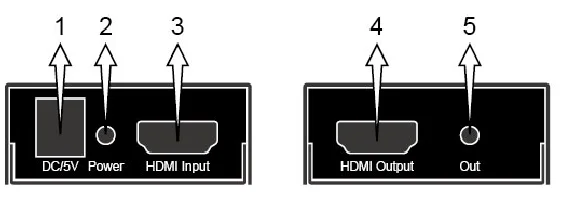

Panel Description
1.DC/5V: DC 5V power supply
2.Power: Power indicator
3.HDMI Input: HDMI input port
4.HDMI Output: HDMI output port
5.Out: HDMI output signal indicator
Connection and Operation
1) Connect the HDMI signal sources (Such as PS3, STB etc) into HDMI input
2) Connect the HDMI display device (such as: HD-LCD, HD-DLP) into HDMI output
3) Connect the included DC to USB AM cable when the power is insufficient (Optional)
Specifications
Input | 1x HDMI |
Output | 1x HDMI |
4K@60Hz, YUV 4:4:4, 25m (15m to source + 10m to display) | |
Maximum Range | 4K@30Hz, 40m (25m to source + 15m to display) |
1080P@60Hz, 50m (30m to source + 20m to display) | |
Maximum Resolution | 4K@60Hz, 4:4:4 |
Data transfer speed rate | 18Gbps(Maximum) |
HDMI Compliance | Up to HDMI2.0 |
HDCP Compliance | Up to HDCP2.2 |
Operating Temperature Range | -5 to +55℃ |
Operating Humidity Range | 5 to 90%RH (No Condensation) |
Support Video Color Format | Deep color 36bit |
Support Audio Format | DTS-HD/true-HD/LPCM7.1/AC3/DTS/DSD |
Power consumption | 1Watts(Maximum) |
External Power Source (optional) | 5V 150mA on DC receptacle |
Dimension (L×W×H) | 52x48x20mm |
Net Weight | 70g |
Panel Description
1.DC/5V: DC 5V power supply
2.Power: Power indicator
3.HDMI Input: HDMI input port
4.HDMI Output: HDMI output port
5.Out: HDMI output signal indicator
Connection and Operation
1) Connect the HDMI signal sources (Such as PS3, STB etc) into HDMI input
2) Connect the HDMI display device (such as: HD-LCD, HD-DLP) into HDMI output
3) Connect the included DC to USB AM cable when the power is insufficient (Optional)
