HL-HDMI-603
HDMI 2.0V up to 120M
DC 5V
60HZ
ROHS CE FCC
3 years
Availability: | |
---|---|
Quantity: | |
Transmits HDMI video and audio signals up to 120m over a single CAT6 cable
Support video resolution up to 1920*1080@60Hz
Support reverse direction IR signal transmission
Support copy EDID function, can auto-match much kind display device
Compliance with HDMI 1.3 and HDCP 1.2 standard
High compatibility, can auto-match source and display device
Built-in automatic adjustment system, make the image smooth, clear and stable
Built-in ESD protection system
Transmits HDMI video and audio signals up to 120m over a single CAT6 cable
Support video resolution up to 1920*1080@60Hz
Support reverse direction IR signal transmission
Support copy EDID function, can auto-match much kind display device
Compliance with HDMI 1.3 and HDCP 1.2 standard
High compatibility, can auto-match source and display device
Built-in automatic adjustment system, make the image smooth, clear and stable
Built-in ESD protection system
Each set includes one transmitter and one receiver.
Video parameter | |
Video resolution | 480p,720p,1080p |
Audio Sampling rate | 32kHz, 44.1kHz and 48kHz |
IR | 38KHz; NEC |
HDMI Interface | HDMI 1.3 |
HDCP Version | HDCP 1.2 |
Power Supply | DC 5V/1A |
Power dissipation | HDMI Sender: 3W |
HDMI Receiver: 3W | |
Dimension | 92*79*28mm |
Weight | 240g x 2 |
Working Temperature/ Humidity | 0℃ - 70℃ / 10% - 80%RH(Not solidified) |
storage Temperature/ Humidity | -10℃ - 80℃/ 5% -90% RH(Not solidified) |

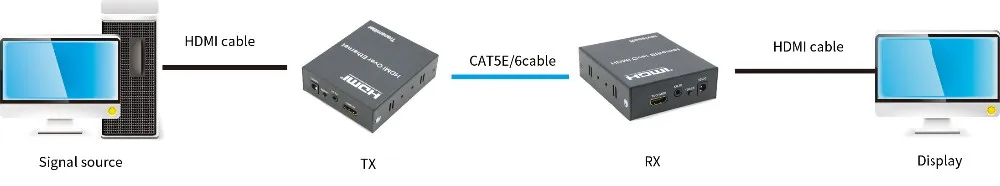

1)Connect the HDMI input source (such as HD-DVD, PS3, STB etc.) to the transmitter.
2)Connect a CAT6 cable from UTP port of transmitter to UTP port of the receiver
3)Connect the HDMI sink (such as HD-LCD, HD-DLP) to the receiver
4)Connect the transmitter UTP port to the receiver UTP port using a single CAT6 cable.
5)Connect the IR TX-UNIT into transmitter IR TX; Connect the IR RX UNIT into receiver IR RX.
6)Power on Transmitter and Receiver.
Each set includes one transmitter and one receiver.
Video parameter | |
Video resolution | 480p,720p,1080p |
Audio Sampling rate | 32kHz, 44.1kHz and 48kHz |
IR | 38KHz; NEC |
HDMI Interface | HDMI 1.3 |
HDCP Version | HDCP 1.2 |
Power Supply | DC 5V/1A |
Power dissipation | HDMI Sender: 3W |
HDMI Receiver: 3W | |
Dimension | 92*79*28mm |
Weight | 240g x 2 |
Working Temperature/ Humidity | 0℃ - 70℃ / 10% - 80%RH(Not solidified) |
storage Temperature/ Humidity | -10℃ - 80℃/ 5% -90% RH(Not solidified) |
1)Connect the HDMI input source (such as HD-DVD, PS3, STB etc.) to the transmitter.
2)Connect a CAT6 cable from UTP port of transmitter to UTP port of the receiver
3)Connect the HDMI sink (such as HD-LCD, HD-DLP) to the receiver
4)Connect the transmitter UTP port to the receiver UTP port using a single CAT6 cable.
5)Connect the IR TX-UNIT into transmitter IR TX; Connect the IR RX UNIT into receiver IR RX.
6)Power on Transmitter and Receiver.
